Description

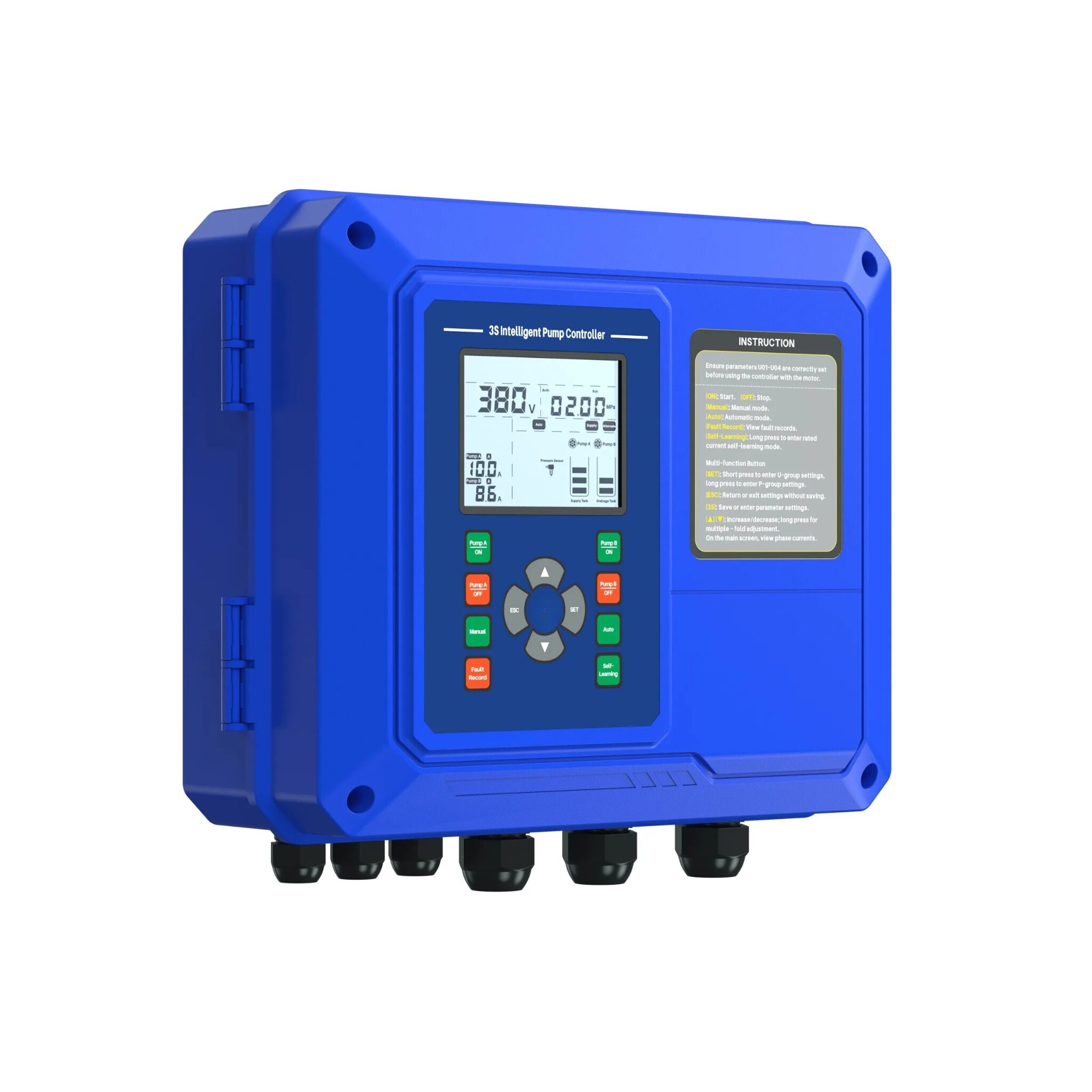

3-Phase ABS Duplex Intelligent Pump Controller
The three-phase intelligent pump controller designed for
dual-pump industrial systems. It supports multiple control logics including duty/standby
operation, automatic alternation, and simultaneous pump operation.
Engineered with an IP65 flame-retardant ABS enclosure and a comprehensive
17-protection safety system, the controller ensures reliable pump management in demanding
applications such as water supply systems, drainage stations, cooling systems, and industrial pump rooms.
Key Features
| Feature |
Description |
| Wide Voltage Compatibility |
Supports AC220–450V input with dual frequency operation (50Hz / 60Hz). |
| Dual Pump Control |
Controls two pumps with automatic duty/standby switching and intelligent alternation. |
| Flexible Control Logic |
Five operational logics including single pump, dual pump simultaneous, duty/standby, alternation, and cyclic timing. |
| Industrial ABS Housing |
IP65 flame-retardant ABS enclosure designed for durability and electrical safety. |
| Advanced Protection System |
17 integrated protection features protect pumps, motors, and electrical systems. |
| Smart Connectivity |
Optional RS485 (Modbus-RTU), IoT, and Wi-Fi for remote monitoring and BMS integration. |
| EMC Stability |
EFT and surge suppression for stable operation in industrial electrical environments. |
Technical Specifications
| Parameter |
Specification |
| Voltage |
AC220-415V ±15% / Optional AC440-490V |
| Frequency |
50Hz / 60Hz |
| Motor Power Range |
4.0 / 7.5 / 11.0 / 15.0 kW |
| Controlled Pumps |
2 Pumps (Pump A / Pump B) |
| Control Logic |
Single pump, dual pump simultaneous start, duty/standby, alternation, timed rotation, cyclic timing |
| Control Modes |
Manual / Automatic / Timer / Remote (optional) |
| Remote Communication |
RS485 (Modbus-RTU), WiFi, IoT (optional) |
| Mounting |
Wall Mounted |
| Ambient Temperature |
-20°C to +55°C |
| Relative Humidity |
20% – 95% RH (Non-condensing) |
| Installation Altitude |
< 2000 meters |
| Enclosure Material |
Flame-Retardant ABS (IP65) |
Compatible Sensors
| Signal Type |
Supported Devices |
| Digital Inputs |
Float switch, flow switch, level electrode, 3-wire pressure gauge, 2-wire pressure switch |
| Analog Inputs (4–20mA) |
Level sensor, pressure transmitter, optional temperature & humidity sensors |
| Analog Inputs (0–5V) |
Remote pressure gauge (0-5V) |
Protection Functions
| Category |
Protection Features |
| Electrical Protection |
Over current, under current, over voltage, under voltage, phase loss, phase sequence |
| Motor Protection |
Locked rotor, blockage detection, dry-run protection |
| System Protection |
3-phase unbalance monitoring, signal loss detection, transmitter error detection |
| Operational Protection |
Frequent start/stop protection, anti-rust automatic start, water leakage detection |
| Sensor Protection |
PTC probe protection |
| Protection Delay |
Adjustable 0 – 120 seconds |
Control & Monitoring Features
- LCD Interface: Displays voltage, current, water level, and pump A/B status.
- Real-Time Alerts: Alarm notifications for faults and abnormal conditions.
- Fault Records: Stores the last 10 system faults for diagnostics.
- Auto Restart: Automatic restart after voltage, current, or dry-run faults.
- Adjustable Restart Time: Configurable from 0 to 120 minutes.
- Self-Learning Protection: Automatically collects data to optimize protection parameters.
- Memory Function: Maintains configuration settings during power outages.
- Advanced Timing: Cyclic run and stop durations up to 999 hours 59 minutes.

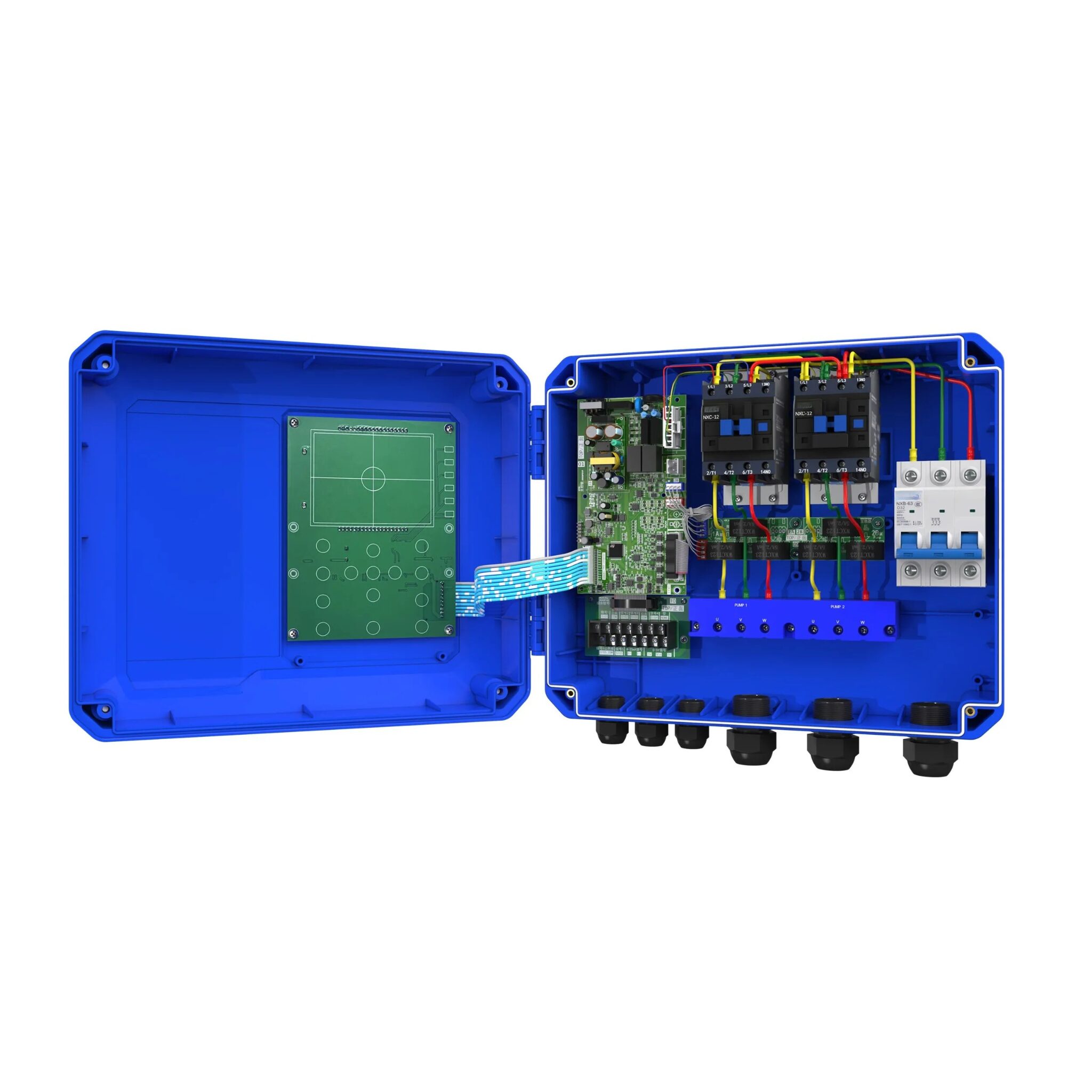

Industrial Quality Components
| Component |
Specification |
| Controller Chip |
Industrial MCU |
| Relay |
Industrial Relay |
| MCB |
Industrial Circuit Breaker |
| AC Contactor |
Industrial Contactor |
| PCB Protection |
Triple-proof coating with waterproof protection |
| Quality Inspection |
14-step traceable inspection process |
Certifications & Compliance
| Certification |
Standard |
| CE Certification |
European Conformity |
| EMC |
EN IEC 61000-6-3:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| LVD |
EN 61439-1:2011, EN 61439-2:2011 |
Quality & Reliability Tests
- Glow Wire Safety Test
- AC Hipot & Insulation Resistance Test
- SPD Thermal Stability Test
- IP65 Protection Test
- High Temperature Aging Test (55°C)
- Temperature & Humidity Cycling Test (70°C / 95% RH)
- Dust and Sand Resistance Test
- Vibration Resistance Test
- Drop Test
- ±4kV ESD Test
- Lightning Surge Test
- 2kV EFT Burst Test
- Simulation Lightning Impact Test
