Smart Irrigation Automation System – Precision Agriculture Solution

Description

Smart Irrigation Automation System – Precision Agriculture Solution

Unlock the full potential of precision agriculture with an advanced automated irrigation system designed for efficiency, reliability, and sustainability. This solution combines intelligent control with real-time sensing to deliver optimal water management for modern farming.

🌱 System Overview

This smart irrigation system uses a programmable controller and high-precision sensors to automatically regulate watering based on soil conditions, pressure levels, and system safety status.

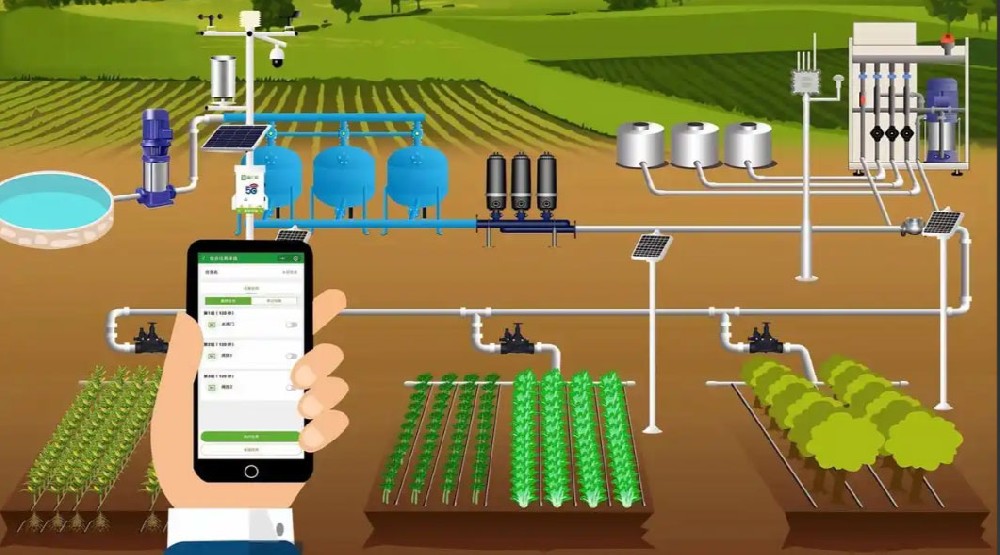

From water source to plant root, every stage of the irrigation process is monitored and controlled to ensure maximum efficiency and protection.

⚙️ Core Components

• PR200 Programmable Relay – Central control unit managing all logic and automation
• PD111 Pressure Transmitter – Accurate pressure monitoring for filtration and system safety
• Soil Moisture Sensors – Real-time soil humidity detection
• Dry Running Sensor – Prevents pump operation without water
• Sand Separator & Filters – Ensures clean water distribution
• Relay Outputs & Valves – Automated control of pump and flow paths

🔄 How It Works

The system continuously monitors soil moisture, pressure levels, and equipment status. When low soil humidity is detected:

Soil Moisture + Pressure Data → Controller Processing → Automatic Irrigation Activation

Before activating the pump, the system verifies all safety conditions to ensure safe and efficient operation.

🛡️ Built-in Safety & Protection

The system includes multiple safety checks to prevent damage and ensure reliability:

• Dry Run Protection – Stops operation if no water is detected
• Pressure Monitoring – Prevents overpressure in sand filters
• Sand Separator Monitoring – Ensures proper filtration functionality

Self-Protection Mode

If a fault occurs during operation (e.g., sand separator failure), the system automatically:

• Turns OFF the pump
• Closes the non-return valve
• Opens the bypass valve

After maintenance, the system can be reset and resumed with a single action.

📊 Intelligent Control Logic (I/O Overview)

Inputs:

• I1 – Dry running sensor
• I2 – Sand separator status
• I3 – System reset
• AI1 & AI2 – Soil humidity sensors
• AI3 – Pressure sensor

Outputs:

• Q1 – Water pump
• Q2 – Sand separator
• Q3 – Non-return valve
• Q4 – Bypass valve

🌾 Key Benefits

• Increased crop yield through precise irrigation
• Reduced water waste and operational costs
• Lower energy consumption with optimized pump usage
• Enhanced equipment protection with automated safety logic
• Real-time monitoring for smarter decision-making

🔧 Designed for Flexibility

• Easy integration with existing irrigation infrastructure
• Customizable control logic for different agricultural needs
• Scalable for small farms to large operations

🌍 Ideal Applications

• Open-field farming
• Greenhouses
• Drip irrigation systems
• Smart agriculture projects

💡 Why Choose This Solution?

Built with industrial-grade components and intelligent automation logic, this system ensures reliable performance and efficient water usage—helping you maximize productivity while minimizing costs.
