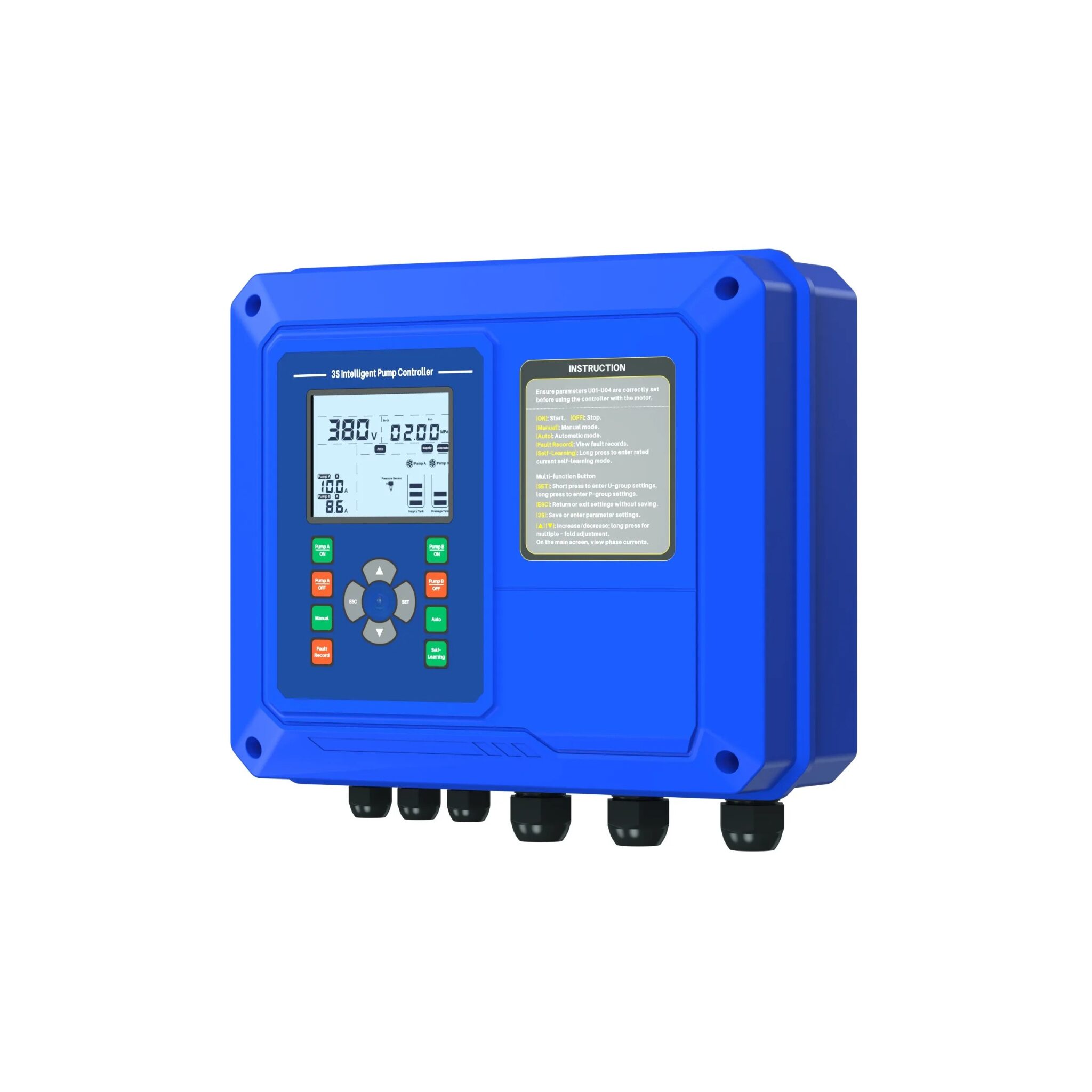

1-Phase ABS Duplex Intelligent Pump Controller
The 1-Phase ABS Duplex Intelligent Pump Controller is a high-performance dual-pump control system designed for continuous water supply and pumping applications such as sewage lift stations, irrigation systems, and reservoir management. Supporting two pumps , the controller enables automatic duty/standby switching, alternating operation, and simultaneous pump control for reliable and efficient water management.
Designed with a flame-retardant IP65 ABS enclosure, the controller provides excellent protection against dust, moisture, and harsh environmental conditions. It supports a wide voltage range of AC110–250V and both 50Hz and 60Hz frequencies, ensuring compatibility with global electrical systems.
With support for multiple sensor types and advanced pump control logic, the controller ensures stable operation and intelligent automation. The integrated 13-protection safety system protects pumps and motors from electrical faults, dry-run conditions, and abnormal operating states, while built-in redundancy ensures continuous operation in critical applications.
Key Features
| Feature | Description |
|---|---|
| Dual Pump Control | Controls two pumps with automatic alternation, standby switching, and simultaneous operation. |
| Wide Voltage Compatibility | AC110–250V input with dual frequency support (50Hz / 60Hz). |
| IP65 Flame-Retardant ABS Enclosure | Provides reliable protection in harsh industrial and outdoor environments. |
| Supports 10 Signal Types | Compatible with level, pressure, and flow monitoring devices. |
| 13 Protection Features | Protects pumps from electrical faults, dry running, and abnormal conditions. |
| Smart Pump Control Logic | Supports alternating operation, primary/standby mode, cyclic timing, and load balancing. |
| IoT & BMS Integration | Optional RS485, IoT, and Wi-Fi connectivity for remote monitoring and building management systems. |
Technical Specifications
| Parameter | Specification |
|---|---|
| Voltage | AC110–250V |
| Frequency | 50Hz / 60Hz |
| Pump Power | 0.37-4kW |
| Number of Pumps | 2 Pumps (Pump A / Pump B) |
| Control Logic | Single pump operation, dual pump start, duty/standby mode, alternation, timed rotation, cyclic timing |
| Control Modes | Manual / Auto / Timer / Remote (optional) |
| Remote Communication | RS485 (Modbus-RTU), IoT, Wi-Fi (optional) |
| Enclosure | Flame-retardant ABS, IP65 |
| Mounting | Wall Mounted |
| Operating Temperature | –20°C to +55°C |
| Humidity | 20% – 95% RH (non-condensing) |
| Altitude | Below 2000 m |
Compatible Sensors
| Input Type | Supported Devices |
|---|---|
| Digital Inputs | Float switch, flow switch, level electrode, 3-wire pressure gauge, 2-wire pressure switch |
| Analog Inputs (4-20mA) | Level sensor, pressure transmitter, optional temperature & humidity sensors |
| Analog Inputs (0-5V) | Remote pressure gauge |
Protection Functions
| Protection Type | Function |
|---|---|
| Electrical Protection | Over current, under current, over voltage, under voltage |
| Motor Protection | Locked rotor protection and blockage detection |
| Pump Protection | Dry-run protection and anti-rust automatic start |
| Signal Monitoring | Signal loss detection and transmitter error alerts |
| Optional Protection | Frequent start/stop protection and water leakage detection |
Core Components
| Component | Specification |
|---|---|
| MCU Chip | Industrial MCU |
| Relay | Industrial Relay |
| MCB | Circuit Breaker |
| AC Contactor | Industrial Contactor |
| PCB | Triple-proof coated PCB with waterproof protection |
Testing & Certifications
- CE Certification
- Glow Wire Test
- AC Hipot / Insulation Resistance Test
- SPD Thermal Stability Test
- Temperature & Humidity Cycling Test
- Dust & Sand Resistance Test
- High Temperature Aging Test
- IP65 Protection Test
- Vibration Resistance Test
- Drop Test
- ±4kV ESD Test
- Lightning Surge Test
- 2kV EFT Burst Test
Core Functions
- Real-time LCD monitoring of voltage, current, water level, and pump status
- Dual-pump control logic with alternation and standby switching
- Fault alarm system storing the last 10 fault records
- Automatic restart after electrical or dry-run faults
- Adjustable protection delay (0-120 seconds)
- Self-learning protection parameter setup
- Cyclic timing run and stop control
- Memory function retains settings after power outage
Applications
- Small farm irrigation systems
- Residential water supply
- Reservoir pump alternation
- Compact sewage lift stations
